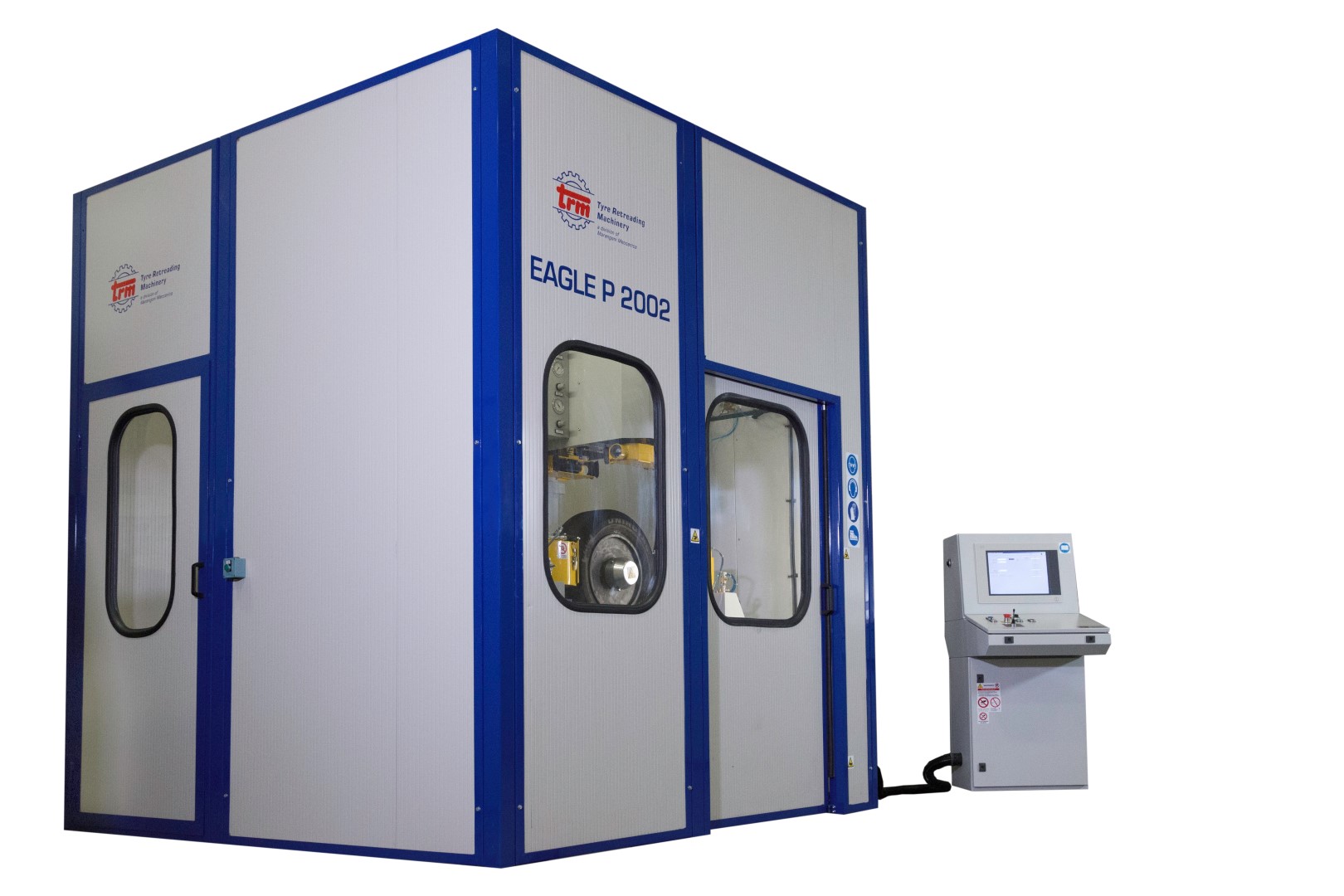

Eagle P 2002

Electronic Buffing machine designed to buff passenger, 4x4, light truck casings in the range 10”-17,5” in the standard version, or in the range 14”-22” in the latest version with reinforced chuck unit. The machine is equipped with 2 horizontal buffing heads working on 2 axis, and is particularly suited for high capacity retreading plants. The bead plate chuck system allows quick replacement of bead plates and mechanical adjustment of the bead width. The program enables to set up to an unlimited number of buffing recipes with an easy programming system of the parameters.

Other main features:

  • Automatic blade-wear compensation
  • Automatic program to invert rotation of buffing head
  • Display with actual circumference of the buffed tyre
  • Automatic cycle joystick operator for manual operation
  • Control of total and partial production, both nr of cycles and type of programs performed
  • Blade cooling system
  • Reinforced brushing unit for sidewalls of 4x4 tyres ( nr. 2 motors, 5.5 kW/each )
  • Circumference measuring device
  • Soundproof enclosure can be offered upon request
