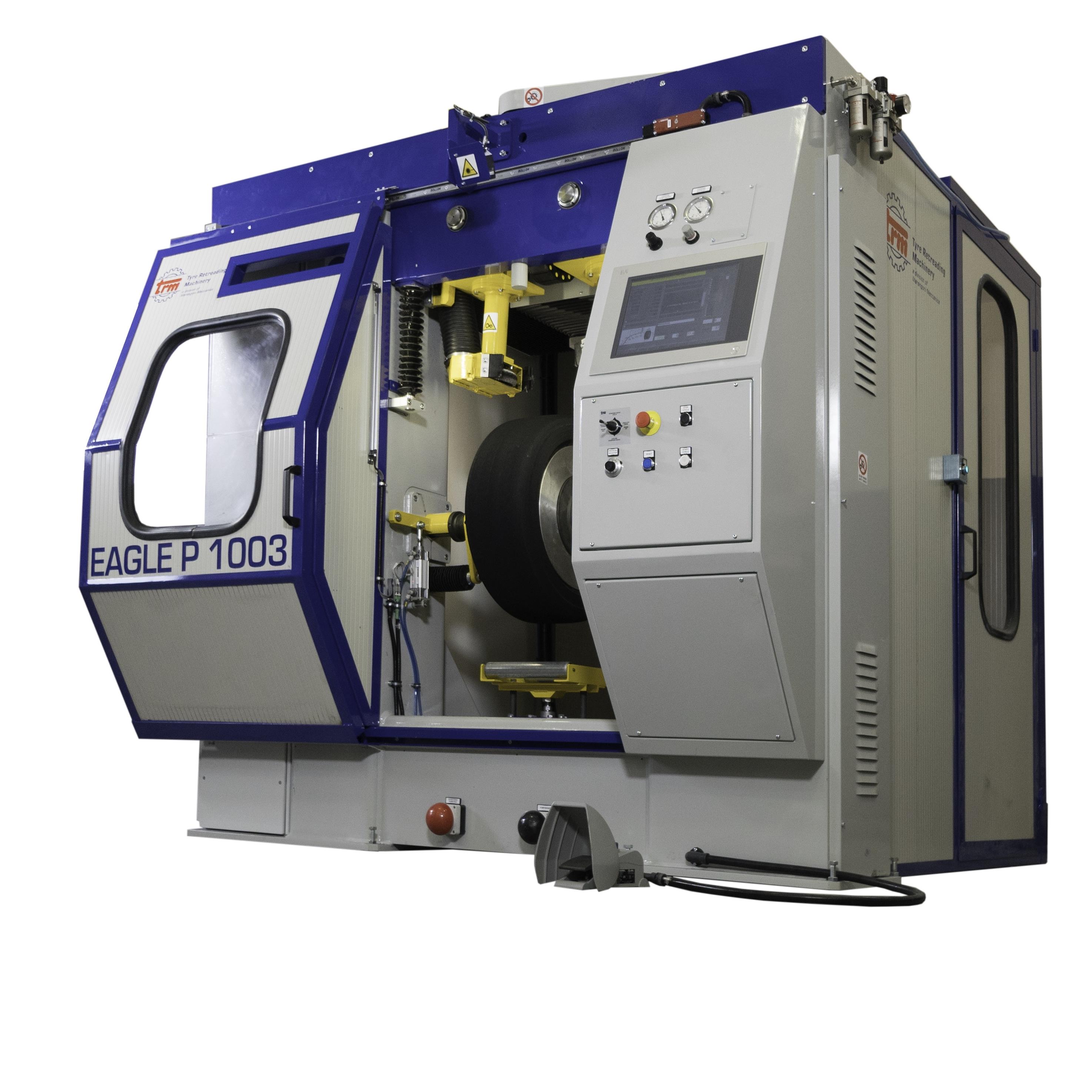

Eagle P 1003

Buffing machine with CNC designed to buff passenger, 4x4, and light truck casings in the range 10”-17,5”, equipped with 1 vertical buffing head working on 3 axis. The bead plate chuck system allows quick replacement of bead plates and mechanical adjustment of the bead width. The program enables to set up to an unlimited number of buffing recipes with an easy programming system of the parameters.

Other main features:

  • Automatic blade-wear compensation
  • Automatic program to invert rotation of buffing head
  • Display with actual circumference of the buffed tyre
  • Automatic cycle joystick operator for manual operation
  • Control of total and partial production, both nr of cycles and type of programs performed
  • Blade cooling system
  • Reinforced brushing unit for sidewalls ( nr. 2 motor, 3,0 kW/each )
  • Including soundproof enclosure and circumference measuring device
